CNC Machining Center (Model VCM-855)

Name: CNC Machining Center Model VCM855
Brand: PERFECT
Price: 1 USD

Brand Name : PERFECT

Model Number : VCM-855

Certification : ISO9001-2008

Place of Origin : China

MOQ : 1

Price : USD

Supply Ability : 1000

Delivery Time : 10

Packaging Details : STANDARD

Minimum Oeder Quantity : 1

Payment Terms : TT

Supply Aility : 10000

Contact Now

CNC Machining Center

Model VCM-855

CNC Machining Center (Model VCM-855)

Main Specification:

Specifications	unit	VCM-855
X/Y/Z axis
X/Y/Z axis Stroke	mm	800/550/550
Distance from spindle center to column guide	mm	590
Distance from spindle nose to table surface	mm	120-670
Worktable
Worktable Szie	Mm	1000x550
Worktable Max.Load	KG	500
T-Slot
Table T-solt(Number-width×pitch)	mm	5-18×90
Spindle
Spindle Taper		7:24
Spindle Rotation speed	rpm	8000
Spindle Transmission Type		Timing belt
Bearing Lubrication Mode		Oil-immersed Lubrication
Spindle Motor Power	KW	7.5
Three AXES Motor Power	KW	3.0
Feeding
X&Y Axis Fast Movement	m/min.	24
Y Axis Fast Movement	m/min.	24
Max. Cutting Feeding Speed	m/min.	10
Auto Tool Changer System
Tools Quantity (Standard)		24
Spindle Type		BT40
Tools Clamping & Loosen		Pressure Increasing Cylinder
Average Tool Change time	Second	3.5
CNC System	0i-MF	JAPAN FANUC
Accuracy
Positioning Accuracy	mm	±0.01
Re- Positioning Accuracy	mm	±0.01/300
Machine Weight	KG	5000
Air Pressure Requirement	Kg/cm²	6
Machine Overall Dimension	Mm	3000x2300x2200

Should Your Excellency need more information about us, please send us your inquiry.

We warmly welcome customers to visit our factory at any time. No wait, please order now!

Thanks and Best Regards,

JINAN PERFECT MACHINE INDUSTRIAL CO.,LTD

Skype: susancql
Wechat: Susan20133
Mobile: 0086-15954782100 (What´sapp)
E-mail: perfectcnc@perfectcm.com
Website: www.perfectcm.com
FaceBook: https://www.facebook.com/susancql

Buy cheap CNC Machining Center (Model VCM-855) product

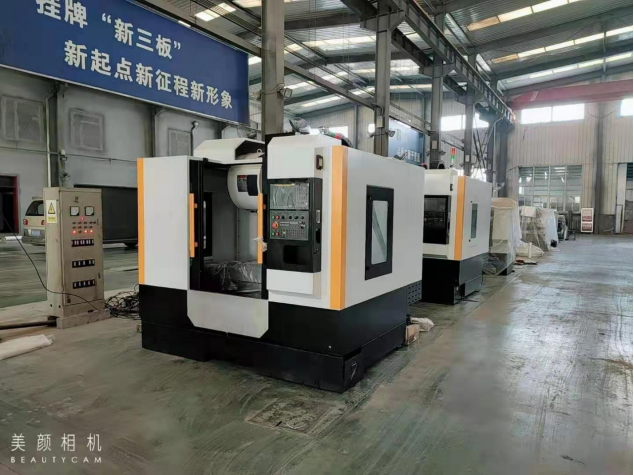

CNC Machining Center (Model VCM-855) Images
